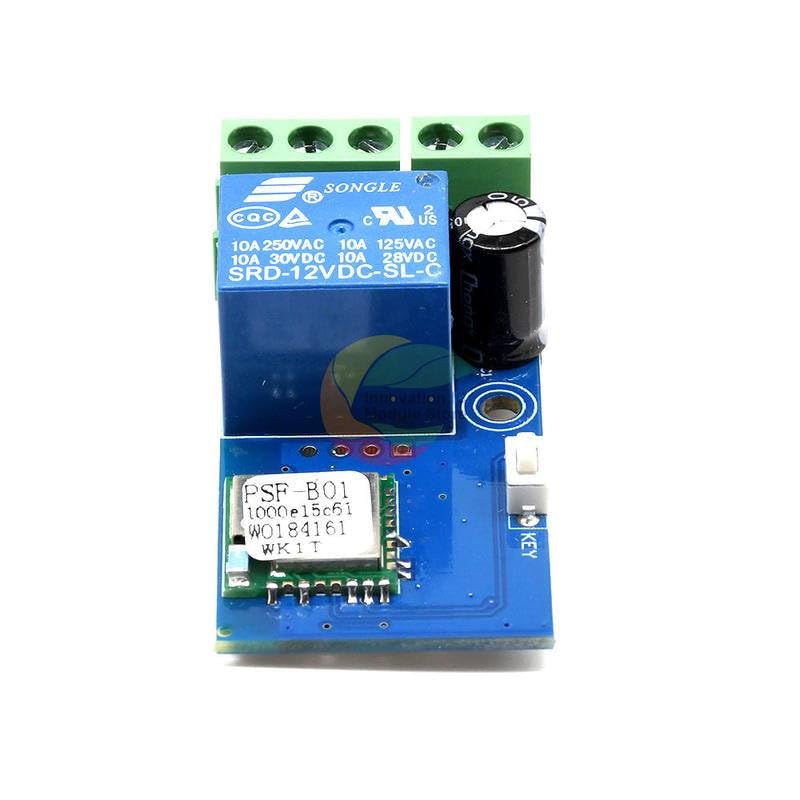

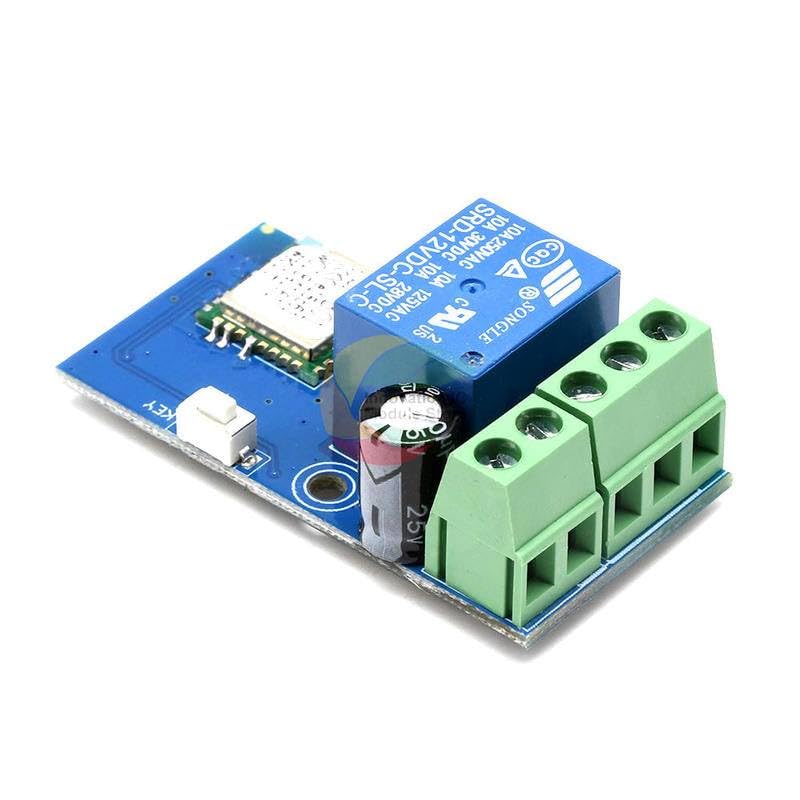

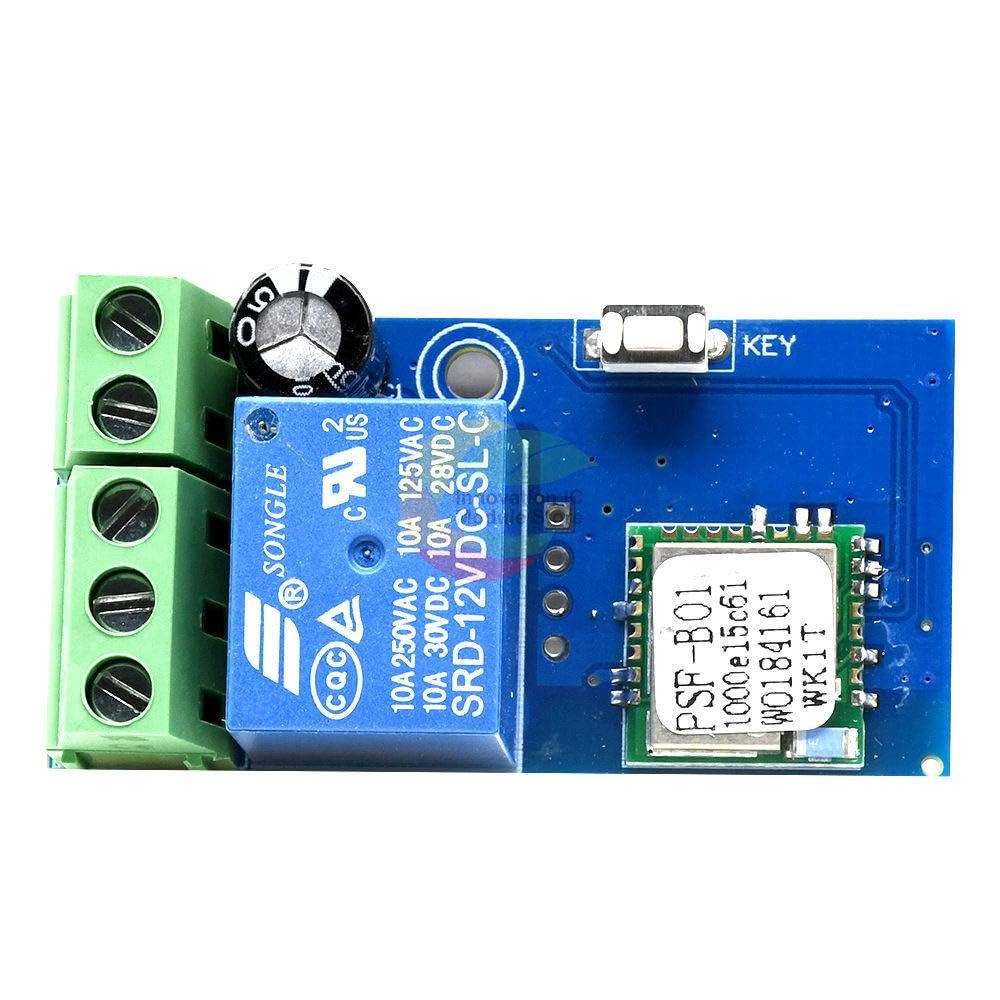

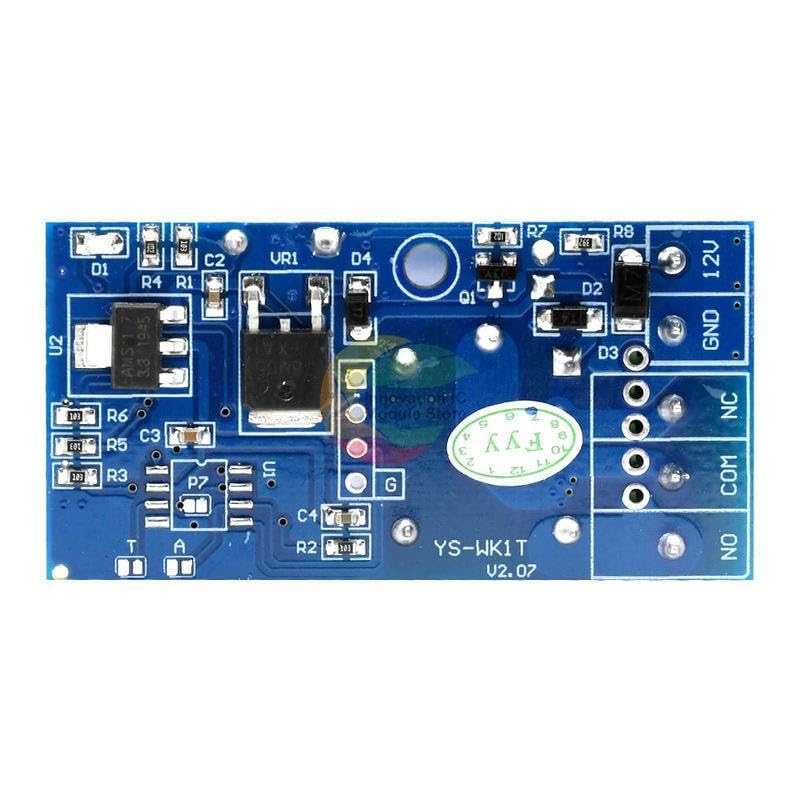

1 Channel DC 12V WiFi Smart Relay Timer Switch Module - Remote Control for Alexa, Echo & Google Home - Perfect for Smart Home Automation, Lighting Control & Appliance Scheduling

Specification:Operating voltage: 12V DC Board consumption: less than 1W Operating current: 250mA Standby current: 90mA Max input current: 10A Supports to control different voltage ranges Relay lifespan: more than 1000000 Insulation resistance: 100M ohm Electric shock voltage: 1000V Relay maximum pull time: 15ms Relay maximum release time: 5ms Operating temperature: -40℃ to +70℃ Operating Humidity: 40%RH ~ 80% RH Size: 52×28×20mm/ 2.05×1.10×0.79 inch(L × W × H) User Guide: 1.Start with “EWelink” APP. 2.Register an Ewelink account; If you have Ewelink account, just log on. 3.Power up. 4.On the device, the default call is closed and can be set to call or maintain in the APP change. 5.Press and hold the Match button for about 7 seconds until the WIFI green LED blinks fast. 6.Tap “+” on Ewelink app; Fast mode is preferred in(Touch), cases you can try compatibility model(AP). 7.Input your WIFI password; Name your device; When the WIFI LED is on, the device is online. 8.Click the on/off buttons on the APP can control device, Manual control switch also can be display real-time on the APP. Package included: 1 X WiFi inching relay switch module
