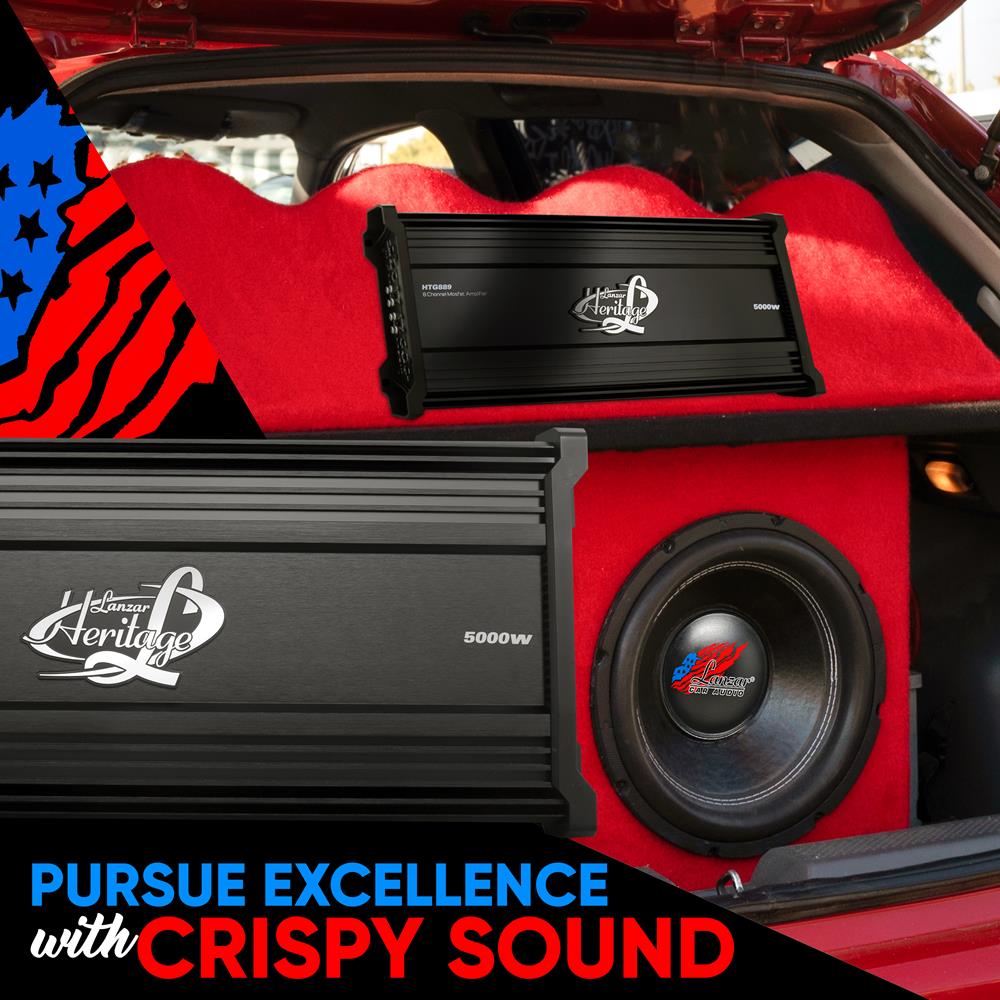

8 Channel Mosfet Amplifier - High Power Audio Amplifier for Home Theater, Car Audio & Professional Sound Systems | Perfect for DJs, Concerts & Multi-Zone Installations

Features:

• Class “AB” High-Current Dual Discrete Drive Stages
• Mosfet PWM Power Supply
• Bass Boost Circuit
• Bridgeable at 4ohms
• 2 Ohm Stereo Stable
• Chrome RCA Inputs, Power Speaker Terminals
• Stereo Line Outputs for Left and Right Channel
• Low Pass Filter Controls
• High Pass Filter Controls
• Band Pass Filter Controls
• 5 Way Protections
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off

What's in the Box:

• 8-Channel Mosfet Amplifier
• Accessories

Technical Specs:

• 8 X 250W RMS @ 4 Ohms
• 8 X 350W RMS @ 2 Ohms
• 4 X 1,000W MAX @ 4 Ohms Bridged
• 8 X 500W MAX @ 4 Ohms
• THD: <0.01%
• S/N Ratio: >90dB
• Channel Separation: >65dB
• Freq. Response: 10Hz-45KHz
• LPF Freq. Response: 40Hz-250Hz
• HPF Freq. Response: 40Hz-250Hz
• BPF Freq. Response: 40Hz-3KHz
• Bass Boost(50Hz) : 0,6,12dB
• Input Sensitivity:0.2V~6V
• Fuse: 100A
• Product Dimensions (L x W x H): 22.83'' x 8.81'' x 2.24'' -inches
