Digital Ultrasonic Thickness Gauge 0.65-600mm (0.025-23.62in) for Steel, Aluminum, Copper - Paint Through Measurement, Pulse Echo Mode - Ideal for Metal Inspection, Welding & Corrosion Testing

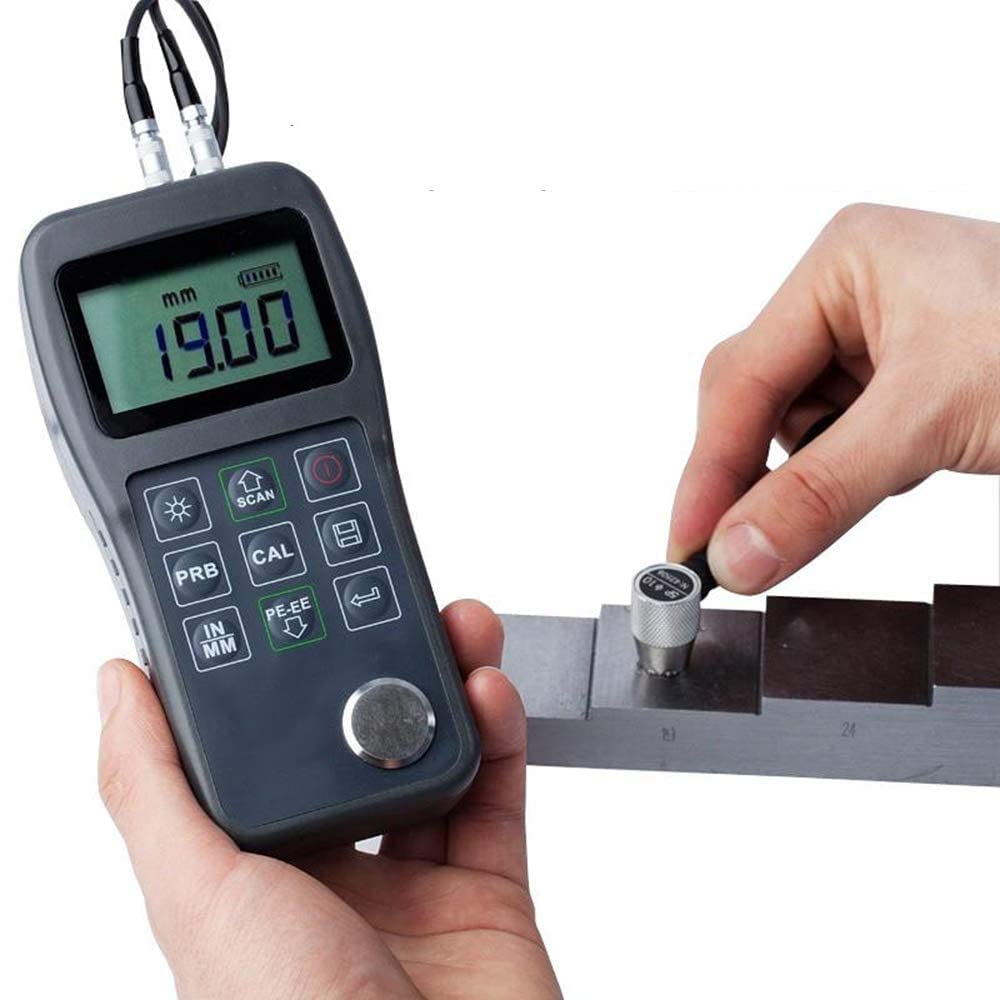

The model MT190 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between puluse-echo mode (flow and pit detection), and echo-echo mode ( eliminate paint or coating thickness ) Function & application Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications. Technical Specifications *Measuring range：0.65-600mm（Pulse-Echo mode),3-60mm (Echo-Echo mode) *Resolution Accuracy：0.1/0.01mm *Accuracy: ±（0.5%Thickness+0.01）mm *Communication storage：USB(USB communication cable is Optional Accessories ) *Working time：100h (EL backlight off). *Main unit weight：245g *Dimensions：150×74×32 mm. *Power supply: two AA size alkaline batteries（Battery not included in the package） Working Conditions *Operating Temperature: －20℃～＋50℃ *Storage Temperature：-30℃～＋70℃ *Relative Humidity ≤90％ *The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust. *Standard Accessories : Host, Narrow-pulse thickness probe P5EE, ABS instrument case, Attached files *Optional Accessories: DataPro software, USB communication cable
